Product Details: Two Layouts, One Efficient Core

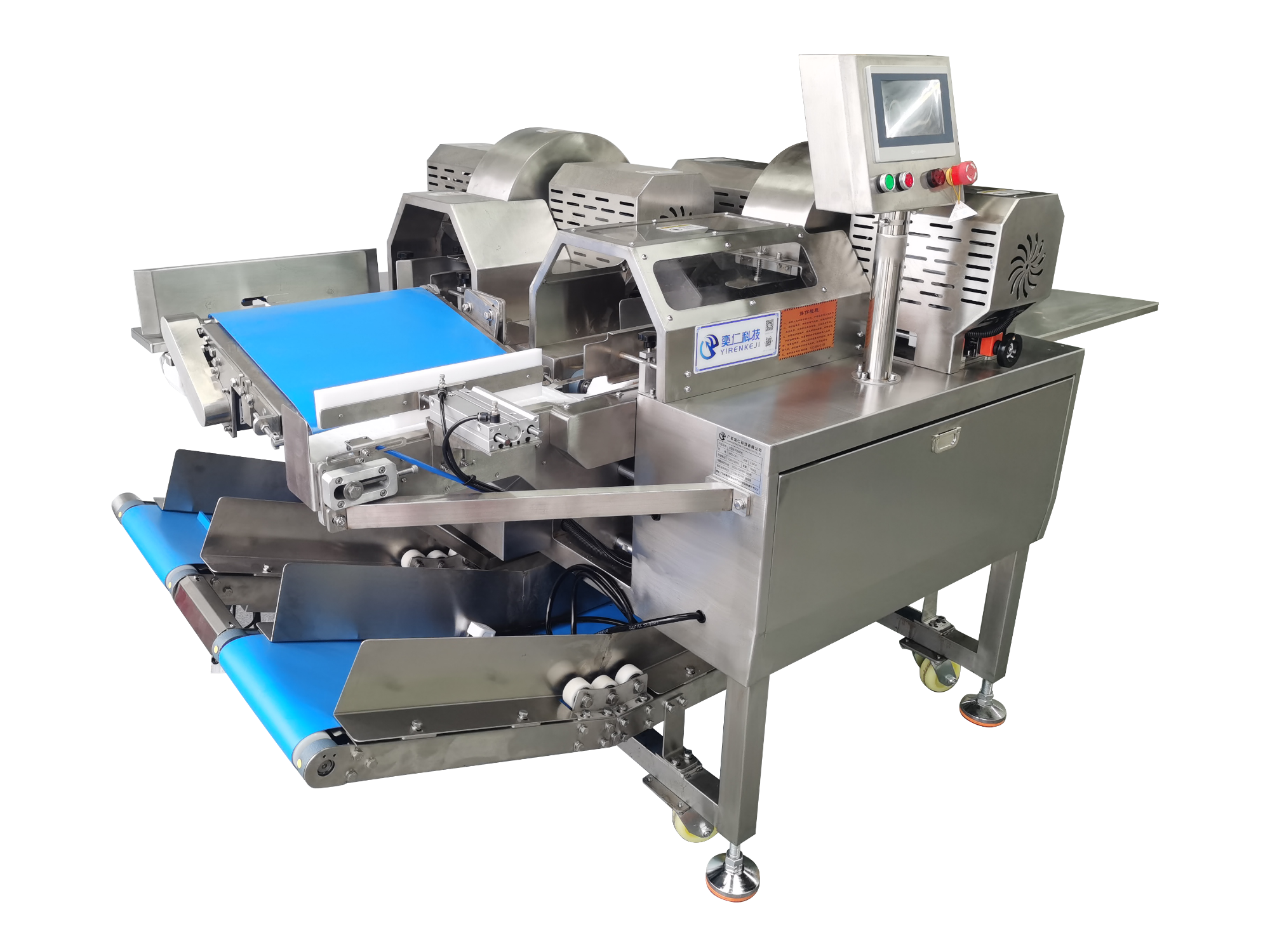

1. U-Shaped Layout Machine - The Space Optimization Expert
Core Design Concept:Integrates the conveying, pressing, cutting, and discharge modules into a U-shaped trajectory, significantly reducing the machine's depth footprint.
Key Advantages:
Saves Space: Ideally suited for workshops that are narrow or have limited space, allowing for flexible integration into existing production lines.
Optimizes Workflow: The infeed and outfeed are located on the same side, enabling a single operator to perform both loading and unloading simultaneously. This reduces walking distance and enhances ergonomic efficiency.
Flexible Layout: Easier to fit into corners or between other equipment ("plug-and-play" in tight spaces).
Ideal Application Scenarios:Retrofitting compact older facilities, lean production line layouts, and factories seeking to optimize individual workstation workflows.
| Parameter | U-Shaped Layout Model | Linear Layout Model |
|---|---|---|
| Model | XYD-QP1(U) | XYD-QP1(L) |

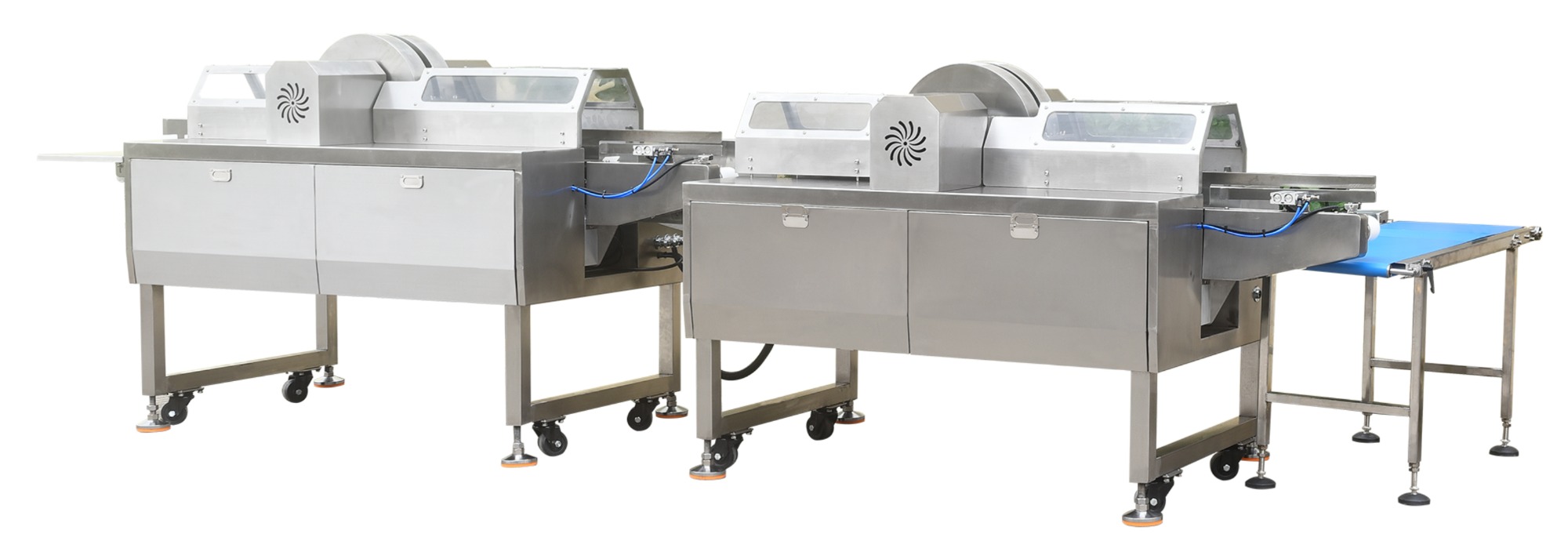

| Equipment Layout | U-shaped compact layout, infeed & outfeed on same side | Linear layout, infeed & outfeed on opposite sides |
| Footprint (LWH) | 2035 * 1400 * 1435 mm (Reduced Depth) | 3810 * 1050 * 1365 mm |
| Throughput Capacity | 600 - 1020 loaves/hour | 600 - 1020 loaves/hour |
| Rated Voltage / Power | 220V 50HZ 0.4MPa / 5.2 W | 220V 50HZ 0.4MPa / 5 W |
| Main Material | Stainless steel body, Special steel blades | Stainless steel body, Special steel blades |
Key Advantages Highlighted:
U-Shaped Model: The significantly reduced depth (2035mm vs 3810mm) is a major space-saving benefit for compact production lines.
Consistent Performance: Both models deliver the same high throughput (600-1020 loaves/hour), ensuring no compromise on efficiency regardless of layout choice.
